LG 800
The industry standard in partial body weight support therapy,
trusted by clinicians in facilities worldwide.
Request a Quote
trusted by clinicians in facilities worldwide.
Product Details
Our most popular model, the LiteGait 800 is being utilized in various therapy settings in facilities around the world. The LG 800 device is mobile, fall-free environments with a unique double point suspension system and one-of-a-kind harness that controls posture, balance, and weight-bearing while a client walks overground or over a slow speed rehab treadmill. The four independently adjustable overhead harness straps control posture/motion in three planes, making LiteGait ideal for patients with asymmetrical impairments, as LiteGait is the only system specifically meant for postural control/correction.The versatility of the LG 800 benefit clients of all functioning levels and can be used for supported gait training, pre-gait balance/dynamic standing/strengthening activities, assisted daily living activities, and all while being mobile enough to also use in most hallways and bedsides. The meticulously crafted model has a precision-made, robust actuator that provides 80 cm of powered lift stroke in assisting patients from sit to stand. With their quiet & dependable double motor lift mechanisms, built into the post of the LiteGait, the LG 800 routinely lifts and supports patients weighing up to 200 kgs.
- FlexAble Yoke allows for controllable vertical displacement of the yoke (supportive arms) of the LiteGait-helpful for patients working on pre-gait balance activities, doing mini-squats, or even jogging over a treadmill while safely supported in the LiteGait harness
- Integrated FreeDome Yoke allows the client to rotate 360 degrees while supported in the LiteGait harness enabling practice of walking backward or sideways over the treadmill, as well as gait, balance, and other activities facing outward in the LiteGait overground. The iFreeDome comes as a standard on Deluxe models.
- Exclusive online/onsite training* that is unmatched within the industry. This also includes access to ongoing clinical support & continuing education webinars provided by clinicians from various backgrounds and areas of expertise all coordinated by the Mobility Research Institute of Continuing Education.
Features & Options
LG 700 has a battery-operated, precision-made column lift mechanisms that provide 28" of powered lift stroke in assisting patients, weighing up to 300 kg, in going from sit to stand.
Documents and Data Sheets
Specifications
| Specification | LG 800 | LG 900 | LG150K |
|---|---|---|---|
| Max User Weight | 200 kg | 225 kg | 150 kg |
| Overall Height | 242 | 255 | 242 |
| FreeDome (FDY) | Integrated | Integrated | Integrated |
| FlexAble | I | I | I |
| Max User Height Overground | 217 | 230 | 217 |
| Max User Height Over 6" Treadmill | 202 | 215 | 202 |
| Max User Height OG w/o FDY | N/A | N/A | 216 |
| Max User Height OT w/o FDY | N/A | N/A | 201 |
| Powered Stroke Adjustment | 80 | 90 | 70 |
| Manual Stroke Adjustment | N/A | N/A | N/A |
| Standard Base Width | 86 | 86 | 76 |
| Max Treadmill Width | 84 | 84 | 74 |
| Minimum Door Width | 100 | 100 | 89 |
| Footprint Width x Length | 97 x 123 | 97 x 123 | 87 x 115 |
| Other Base Options | 79 | 79 | 86 |
| Clearance | 54 | 54 | 48 |
| Length of Base Leg | 123 | 123 | 115 |
| Width of Base Leg | 5.5 | 5.5 | 5.5 |
| Height of Base Leg From Ground | 18 | 18 | 22 |
| Harness Included | 1 | 2 | 1 |
| BiSym Tablet | N/A | Wireless | O |
| Nex Gen Capable | O | O | — |
| GaiterStool | O | O | O |
| Handlebar | I | I | I |
| Parallel Grab Bar | O | N/A | O |
| L-Shape Handlebars | O | O | O |
| Q-Straps | I | I | I |
| Power Requirements | 110V-240V 50/60Hz | 110V-240V 50/60Hz | 110V-240V 50/60Hz |
| Base Width Options | 79 | 86 | 79 | 86 | 76 | 86 |
| Max Treadmill Widths | 77 | 84 | 77 | 84 | 74 | 84 |
| Minimum Door Widths | 93 | 100 | 93 | 100 | 89 | 99 |
| Footprints Widths x Length | 90 | 97 x 123 | 90 | 97 x 122 | 87 x 115 | 97 x 115 |

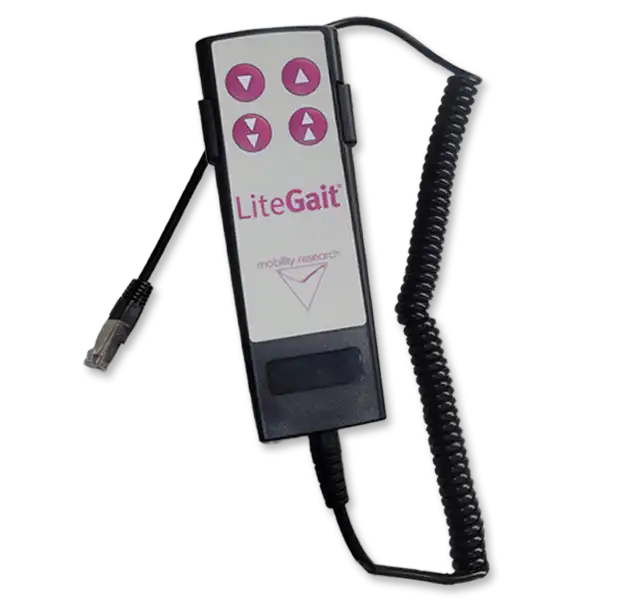

PSSLD-H-A

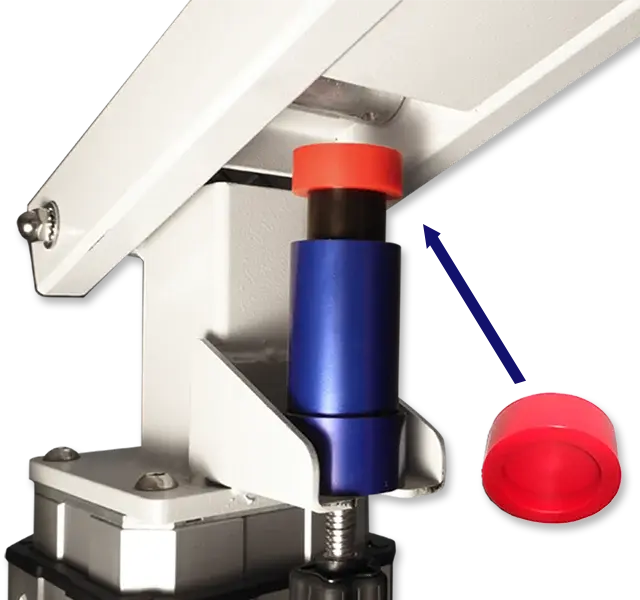

ADD2
